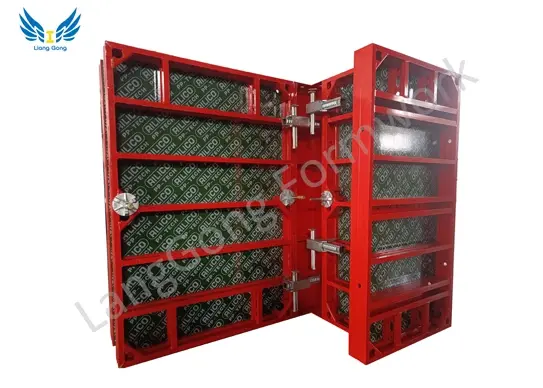

Steel frame formwork, which is a type of steel wall formwork, stands as an outstanding representative of modern construction concepts centered on industrialization, standardization, and efficient construction. By perfectly integrating the rigidity of steel with the functionality of film-faced plywood, it ensures high-standard concrete forming quality while significantly enhancing construction efficiency, reducing overall costs, and offering excellent safety and environmental benefits. For construction projects pursuing a balance of quality, efficiency, and cost-effectiveness, steel frame formwork has become the preferred concrete forming solution.
| Item | Description |
| Frame Material | Q235B Steel, powder coated |
| Formlining | 12mm thickness plywood |
| Panel Depth | 65 mm |
| Panel Weight | 40kg/sqm |
| Max Panel Size | 3*1.2m |
| Panel Dimension | Height: 3000/2400/1200/600 mm Width: 1200/1000/750/500 mm |
| Adjust Hole Distance | 50mm |
| Max Permissible Fresh Concrete Pressure | 60KN/sqm(without waler) 80KN/sqm(with waler) |
| Installation Time | 150sqm/day |
Superior Forming Quality:
With the rigid support of high-strength steel frames and the smooth surface of film-faced plywood, it ensures concrete elements with high dimensional accuracy, excellent surface finish, and sharp edges, effectively minimizing post-cast repairs.
High Reusability & Cost Efficiency:
The robust steel frame structure and wear-and-corrosion-resistant film-faced plywood allow the plywood facing to be reused 30-40 times and the steel frames 200-300 times. This significantly reduces the per-use cost and material waste, delivering outstanding economic benefits.
Standardized Construction for Speed:
Modular design and standardized connectors enable rapid assembly and disassembly. This drastically reduces on-site fabrication, simplifies processes, significantly boosts construction efficiency, and shortens project timelines.
