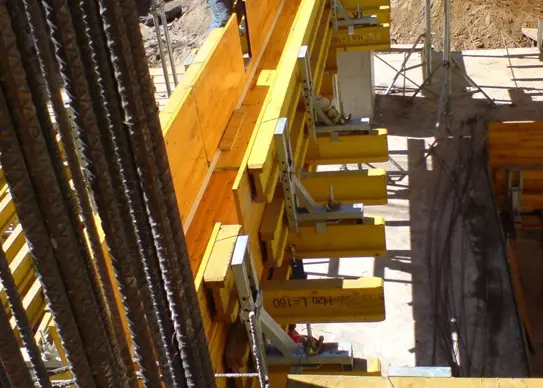

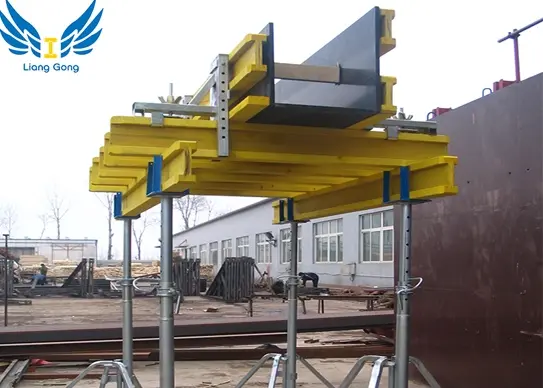

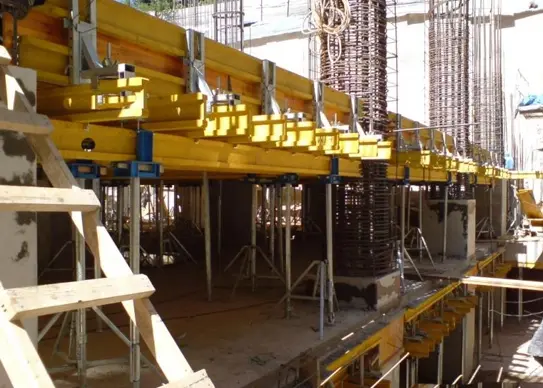

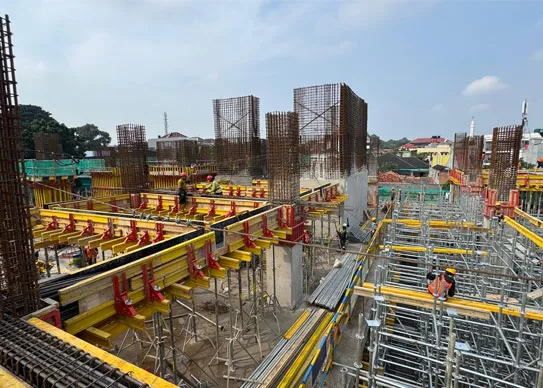

The Timber Beam Formwork system is a highly reliable solution for concrete beam construction in modern building engineering. Composed of premium H20 timber beams, specialized forming supports, plywood, 4-way heads, and heavy-duty steel props, this versatile Wooden Formwork For Concrete structures features exceptional flexibility, simple assembly, and low cost, easily adjusting to accommodate various beam specifications.
System Type | H20 Timber Beam formwork |
Material | |
Steel Part | Beam Forming Support |
Standard Shoring | 60/48 Steel Prop |
Connect | 4 way Head |
Plywood | 18mm Film/Plastic Faced Plywood |
Standard Size | Flexible |
Application | Civil construction and plant projects |
It is convenient and efficient to install and dismantle, ensuring a high turnover utilization rate. As reliable Timber Formwork Suppliers, we design this system to maximize long-term material efficiency.
Its dimensions can be flexibly adjusted to accurately fit the construction needs of beam bodies of different specifications.
The concrete surface after pouring has an excellent forming effect with high flatness, reducing the need for subsequent surface treatment.
This highly adaptable Timber Beam Formwork solution requires less assembly time on-site, ensuring that the overall labor cost during construction is significantly lower.
The reuse rate depends on site maintenance and handling. Under standard operating conditions, our premium Timber Beam Formwork components can achieve high turnover rates, significantly outlasting generic timber. Proper cleaning, timely oiling, and dry storage are key factors to maximizing your equipment investment.
As a premium global supplier, Lianggong provides comprehensive bulk supply channels for high-grade Concrete Formwork Timber. Our production lines support volume orders with consistent quality control, delivering certified H20 timber beams worldwide directly from our manufacturing facilities to optimize your supply chain efficiency.
Untreated pine lacks the necessary moisture resistance and dimensional stability required for commercial concrete shoring. Our engineering team utilizes technically treated spruce wood coated with protective resins to prevent warping, splitting, and premature degradation under intense concrete lateral pressure.
Yes. Applying a professional release agent to Concrete Shuttering Timber is essential. Proper sealing minimizes water absorption, protects the wood fibers, and ensures clean formwork removal, which directly extends the turnover lifespan of the H20 timber beams and guarantees a smooth concrete surface finish.
To prevent concrete adhesion to Wooden Formwork For Concrete, ensure the framework is evenly coated with a high-quality chemical release agent prior to reinforcement installation. Additionally, minimizing exposure to extreme direct sunlight before pouring helps maintain the moisture balance of the timber shutters.
For standard building engineering, a thickness of 18mm is highly recommended when paired with our H20 timber beams. This thickness offers the ideal balance between structural stiffness and weight, preventing the face plywood from flexing between support centers under concrete load pressure.
