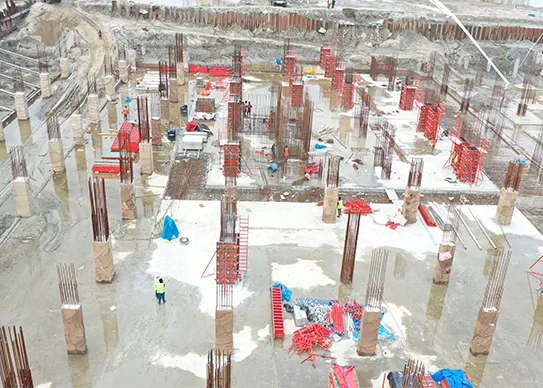

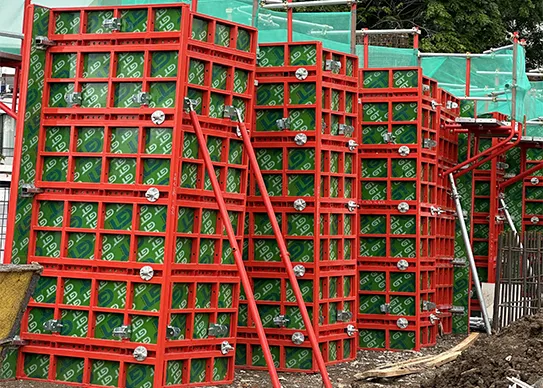

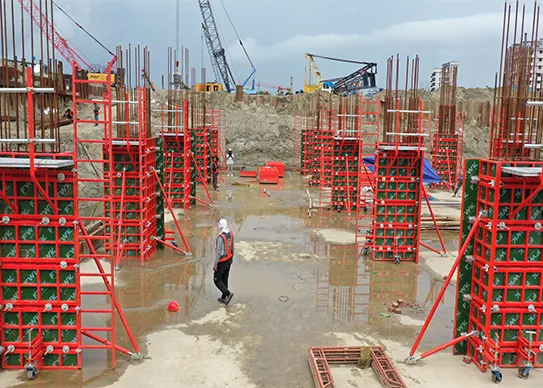

Lianggong steel frame column formwork is an advanced adjustable column system. It's universal and high efficient for colurmn medium to big scale projects under crane assistance. This formwork system ensures high-speed site assembly.
It consists of formwork panel (steel frame lined with 12 mm plywood), and specialized accessories. Our Steel Frame Column Formwork provides reusable, high-strength, and precisely adjustable formwork for concrete column construction, significantly enhancing productivity on construction sites.
Its modular design ensures quick installation and dismantling while maintaining structural integrity throughout the concrete pouring process.
| Item | Specifications |
| Panel height | 3000mm, 2400mm, 1200mm, 600mm |
| Panel width | 1200mm, 1000mm, 750mm, 500mm |
| Plywood thickness | 12mm |
| Allowable concrete pressure | 60-80 kN/m2 |
High Strength & Durability:
This formwork with heavy loads and harsh construction conditions, providing long-term use with minimal wear.
Modular Design:
The steel frame formwork adopts a modular design approach, Its dimensions are highly adaptable, ranging between 600 mm to 3000 mm in height and 500 mm to 1200 mm in width. The inclusion of replaceable panels ensures ease of maintenance, while the steel frame is crafted for durability, promising a lengthy service life.
Superior Concrete Finish:
Smooth surfaces result in high-quality, defect-free concrete finishes.
Fast Installation & Reusability:
Lightweight yet strong components enable rapid setup, improving project timelines. The system can be reused hundreds of times, making it cost-effective.
Easy Transportability:
The formwork is designed for seamless transport, facilitating horizontal maneuverability via a set of wheels and effortless vertical lifting with lifting equipment once securely packaged in its entirety.
