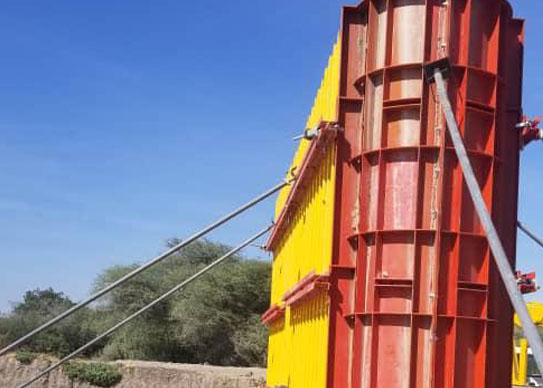

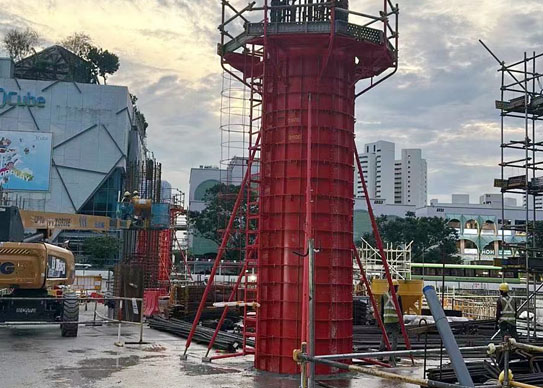

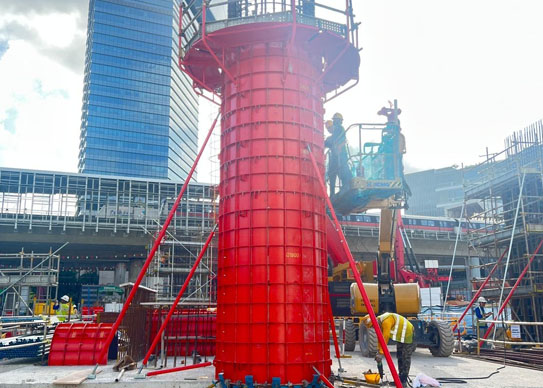

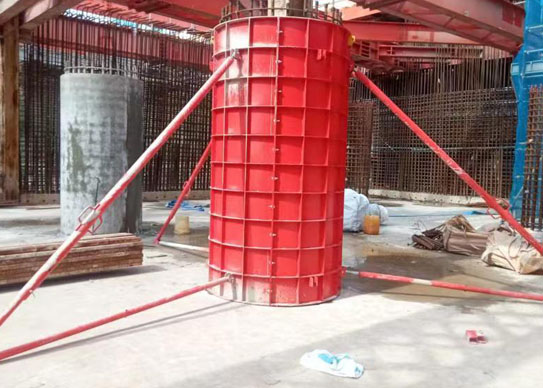

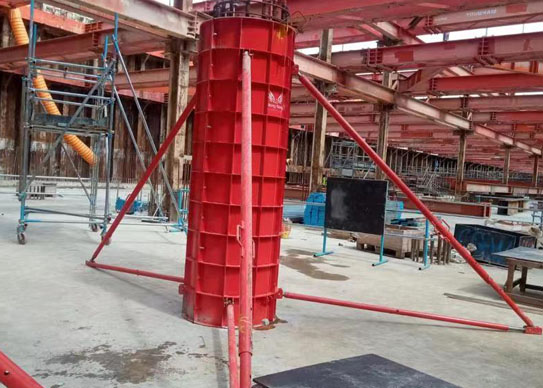

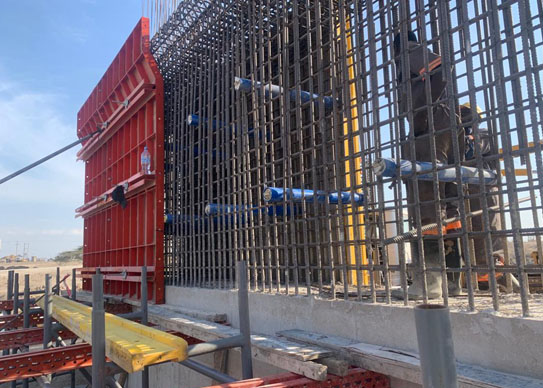

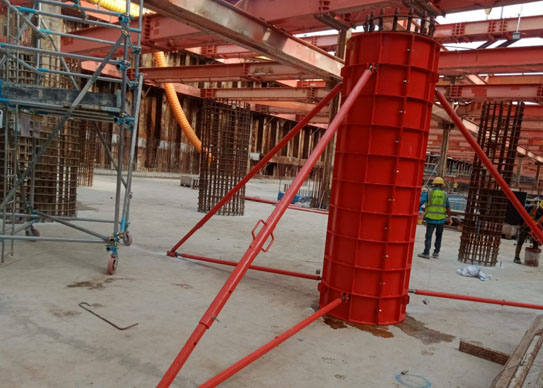

Steel Column formwork is ideal for projects requiring extensive reuse and stringent demands for dimensional precision and surface smoothness of concrete columns. Its core strengths are high reusability, pinpoint accuracy, structural rigidity, and superior molded concrete quality. The size can be customized according to the requirements of the project. Different projects have different bearing capacity requirements. Different specifications of profiles will be selected according to the project requirements to make steel formwork to meet the requirements of lateral pressure.
Item | Description |
| Applicable Column Cross-Sections | Rectangular: 200×200mm ~ 2000×2000mm Circular: Φ300mm ~ Φ2500mm Custom profiles: Fabricated per CAD drawings (design files required) |
| Single-Panel Height | Standard modules: 1.0m / 1.5m / 2.0m / 3.0m Work platforms shall be installed for panels >3m Staged pouring recommended for constructions >6m |
1. When lifting the formwork, lift and put it gently to avoid collision and deformation of the formwork.
2 When removing the formwork, do not use a sledgehammer or crowbar to pry hard to avoid damaging the concrete surface and corners.
3. Check in time. If unevenness or damage and deformation are found near the ribs of the cylindrical formwork, repair them in time.
4. Stack according to specifications and apply anti-rust paint in time to prevent rust.
Precision Assurance
Fabricated from premium steel plates with rigid stiffening ribs, the formwork delivers minimal deformation under high concrete pressure. It ensures precise control over column cross-section dimensions, edge/corner definition, and vertical alignment, establishing a solid foundation for structural integrity.
Operational Excellence
Customized steel formwork feature standardized connectors (bolts/clamps) for rapid assembly and accurate positioning, significantly reducing formwork cycle time. The smooth steel surface combined with professional release agents achieves effortless demolding, producing fair-faced concrete finishes that minimize post-processing.
Engineered Durability
Constructed with Q235 structural steel (equivalent to ASTM A36), the steel formwork system offers exceptional strength, rigidity, and impact resistance. It withstands jobsite abrasion, collisions, and harsh weather conditions, delivering hundreds to thousands of reuse cycles.
