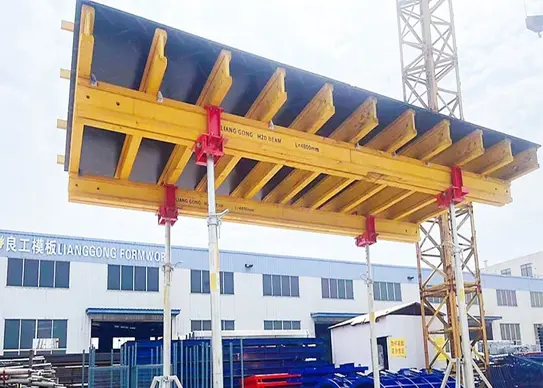

Lianggong slab formwork mainly falls into the following three types, each suitable for specific scenarios: Flex table formwork is applicable to beam-containing project structures. Scaffold table formwork is designed for construction scenarios with a height exceeding 5.5 meters. Steel prop table formwork is used for beamless project structures with a height below 5.5 meters.
This formwork system features convenient erection and strong practicality, enabling quick adjustment and mobile positioning. Thanks to these advantages, it can significantly reduce the usage of beam bodies and provide an economical and efficient solution for the construction of large-area slab structures.

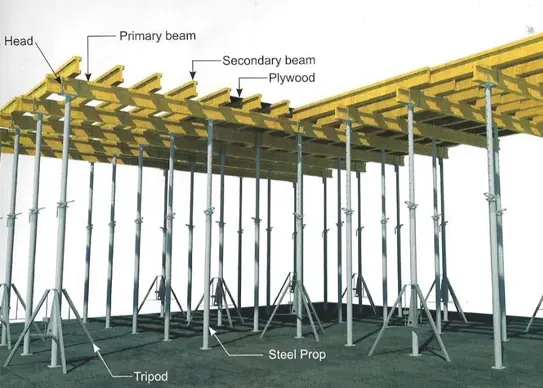

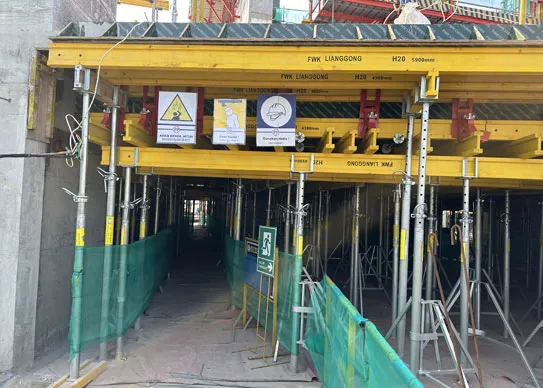

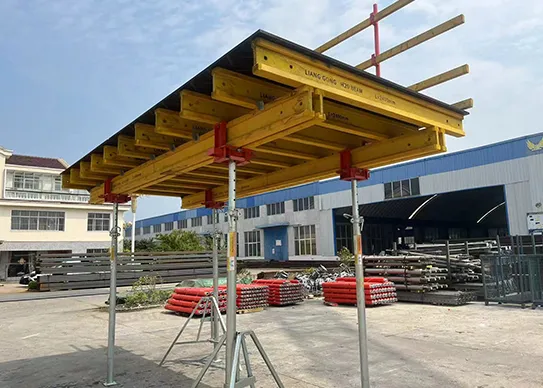

System Type | H20 Timber Slab Formwork |

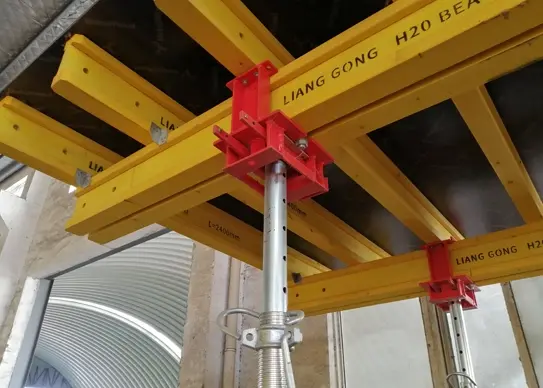

Material | H20 Timber beam |
Plywood | Film/ Plastic Faced Plywood |

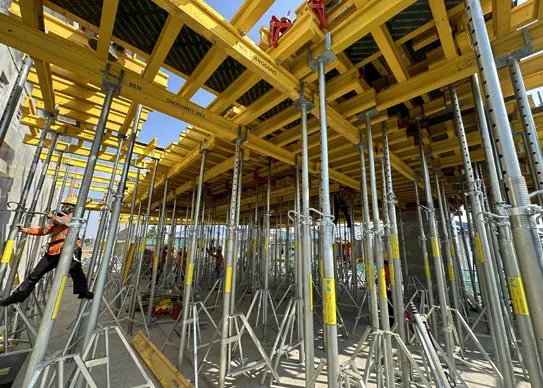

Standard Shoring | Heavy duty Steel Prop |
Max Perm. Slab Thickness | 1000 mm |
Standard Size | 2.44*4.88 or 3.3*5m |
Assembly Method | Pre-assembled on site |
Installation Time | 200 m2/day/set (5 workers) |

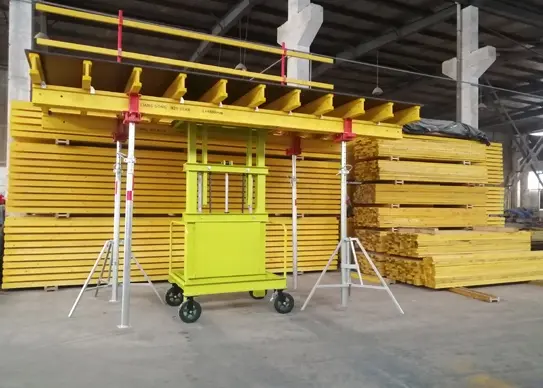

Transportation Method | Trolley or tower crane |

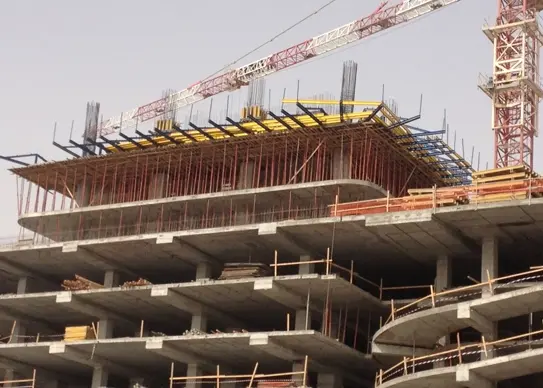

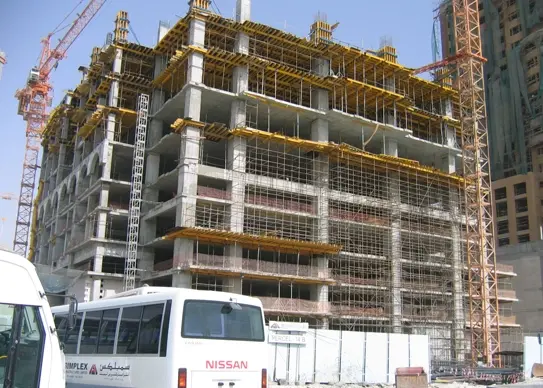

Application | Large area floor project, minimal beam structures, high rise buildings, skyscrapers, factory buildings |
High efficiency assembly. No repeated assembly, no disassembly, minimize additional risks of installation and removal. A team can install up to 200 m² per day.
Reduce labor costs. Simple and quick assembly can reduce labor costs by 50%, and it can be easily moved with trolley or tower crane.
Perfect adaptability. Suitable for large area of ground space, can be used with scaffolding, up to 20 meters.
Enhanced architectural space optimization. Less beams allow for spacious column-free spans. Lianggong's slab formwork system，also known as wood formwork for slab, is particularly suitable for open layouts in modern architecture.
Improve site safety. Prefabricated units and fewer manual steps reduce risks and ensure higher safety.
Can be used with most other formwork systems.
