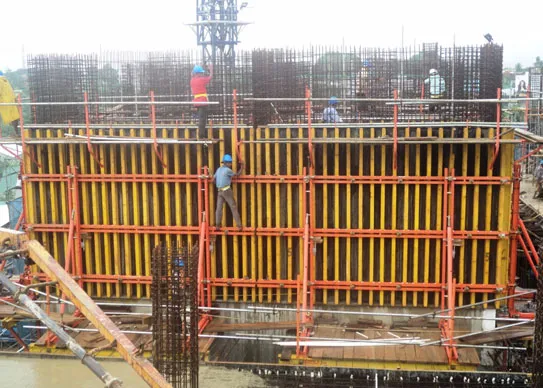

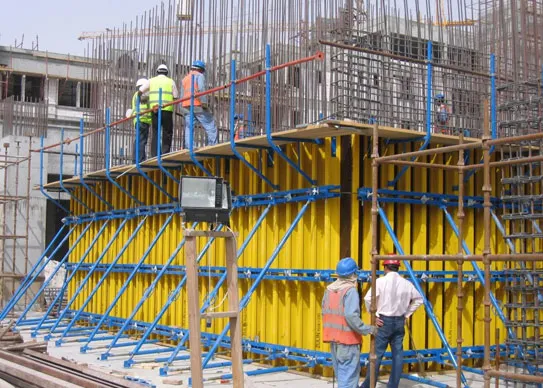

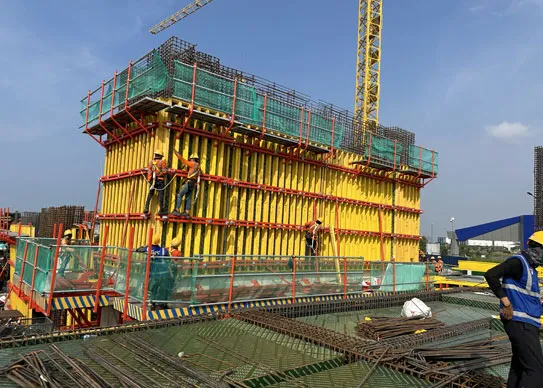

Lianggong H20 timber beam wall formwork system, which is part of the broader timber wall formwork solutions, consists of H20 timber beam, steel walings, plywood and other connecting parts. These components can be assembled formwork panels in different widths and heights, depending on the H20 beam length up to 6.0m.
| Component | Description | ||||||
| Plywood | Form the wall surface, can use 30-40 times. | ||||||
| H20 timber beam | Support the plywood, transfer loads, and prevent deformation. | ||||||
| Steel waler | Enhance the overall stiffness, transfer loads uniformly, and fix the formwork shape | ||||||
| Flange claw | Connect and fix timber beams and steel walers. | ||||||
| Hook | For lifting formwork. | ||||||
Large board width and flat surface
This feature significantly reduces on-site construction workload. It minimizes the number of personnel required for formwork installation, concrete pouring, and formwork removal, thereby saving substantial labor costs. Additionally, it reduces subsequent expenses for decorating, grinding, and finishing concrete exposed surfaces and seams—thanks to the flat surface that ensures smoother concrete formation.
High load-bearing capacity and durability
The system boasts strong load-bearing capacity, effectively withstanding both the pressure generated during concrete pouring and the lateral pressure of wet concrete. Moreover, its surface is treated with a film coating, which imparts a smooth finish, enhances wear resistance, and enables repeated use across multiple projects.
Flexible application and adaptability
3.1 It can be flexibly cut to meet the specific requirements of different projects.
3.2 It is easy to bend and shape: Wooden cylindrical formworks, special-shaped formworks, and other custom components are typically produced via high-temperature hot pressing. This process allows the system to easily adapt to various construction installation needs and create formworks for diverse curved surfaces.
