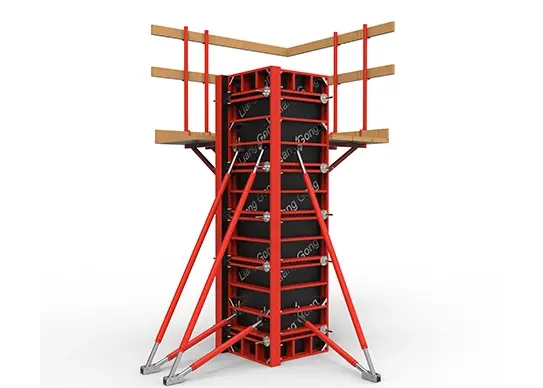

In modern construction, Aluminium Column Formwork exemplifies engineering innovation, delivering unparalleled efficiency and precision for concrete column fabrication. Crafted from premium 6061-T6 aluminum alloy, this system uniquely integrates three critical advantages: exceptional corrosion resistance for reliable performance in humid or chemically aggressive environments; ultra-lightweight construction enabling manual handling where crane access is restricted; and robust load-bearing capacity ensuring structural integrity. This synergy significantly reduces labor costs while accelerating project timelines across challenging job sites.
| Item | Description |
| Frame Material | 6061-T6 Aluminum Alloy, powder coated |
| Form Lining | 15mm thickness plywood |
| Panel Depth | 117 mm |
| Panel Weight | 23 kg/sqm |
| Max Panel Size | 3*1 m |
| Allowable Concrete Pressure | 60 KN/sqm(without waler) 80 KN/sqm(with waler) |
| Ordinary Panel Dimension | Height: 3000/2400/1200/600mm Width: 1200/1000/750/500mm |
| Adjustable Panel Dimension | Height: 3000/2400/1200/600 mm Width: 750 mm (Adjustment interval: 50mm, can pour column section ranging from 150*150 mm to 550*550 mm) |
Ultralight Structures
Aluminum alloy has a density of only 1/3 that of steel, weighing just 23kg per square meter. It enables manpower-only material handling in confined construction sites (e.g., urban renewal projects, basements) where tower cranes or hoisting machinery cannot operate. This reduces large equipment rental costs and energy consumption, lowering comprehensive construction costs by 15-30%.
Exceptional Economic Lifespan

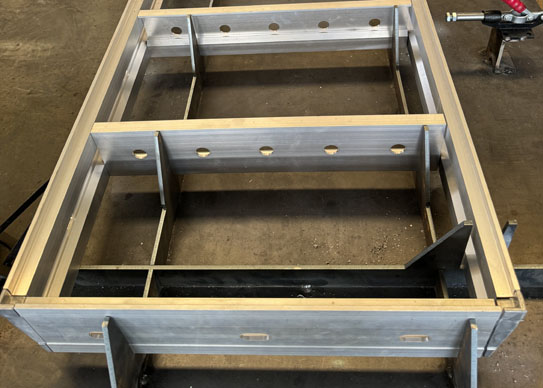

With outstanding corrosion resistance, our 6061-T6 aluminum alloy performs excellently in humid environments, delivering 3× longer service life compared to steel formwork. The aluminum frames withstand 300 reuse cycles, significantly reducing maintenance costs. Featuring high residual value, scrap recycling revenue effectively offsets procurement costs.
Rapid Construction Cycle

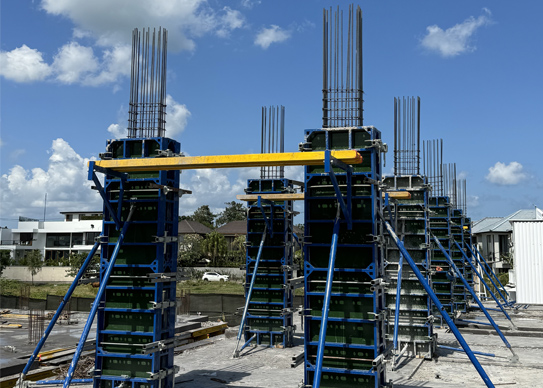

Achieving full-height column pours up to 3m with modular 100m²/day erection rates and millimeter precision, this system accelerates project timelines by eliminating field adjustments.
Green Construction
Aluminum formwork can exceed wood formwork. This significantly reduces timber consumption, waste formwork, and concrete residue, promoting green construction practices.

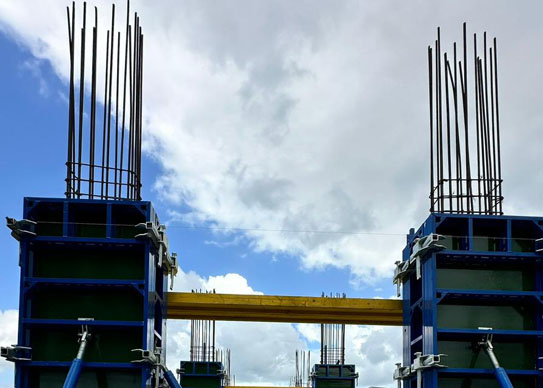

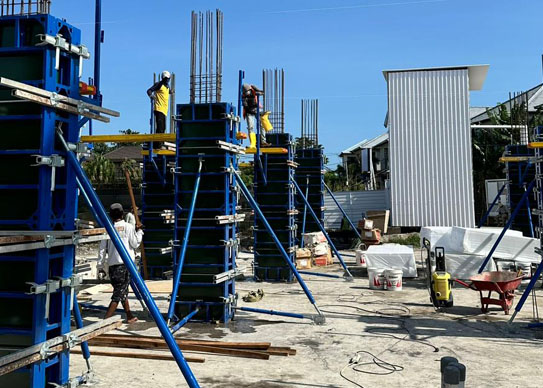

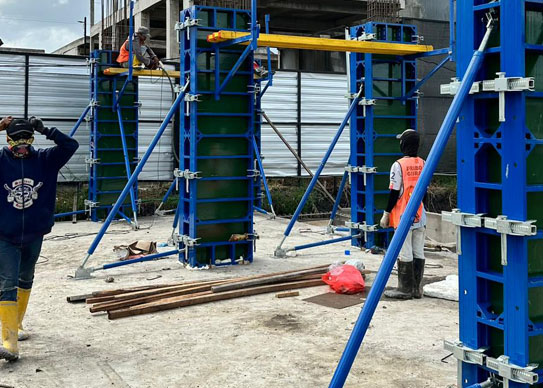

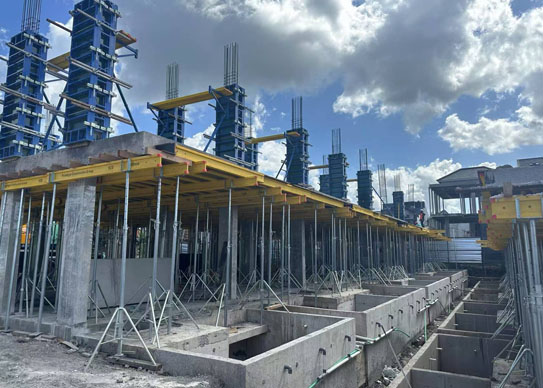

This high-performance aluminium column formwork system is ideally suited for diverse construction demands. It excels in critical applications across rectangular piers and columns, adjustable column formwork and other demanding civil works, consistently delivering precision and efficiency.
